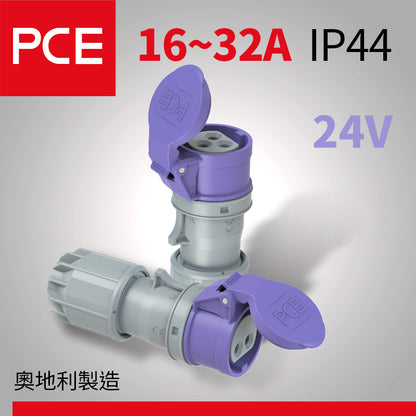

歐洲 PCE 24V 16~32A IP44 中途防水插座

產品特點

• CEE-connectors <50V
• external-central cable gland, perfect anti-kink sleeve
• screwless locking system for the housing
• housing material: PA6
• rated current: 16A or 32A, rated voltage: up to 50V (DV, 50/60Hz, 100-500Hz)
• number of poles: 2/3 pole
• contacts: nickel plated (v)
• screw terminals, large connection space, cable diameter 9,5 - 24 mm
• degree of protection: IP44 or IP67

標準認證

according to IEC/EN 60309
